DESCRIPTION

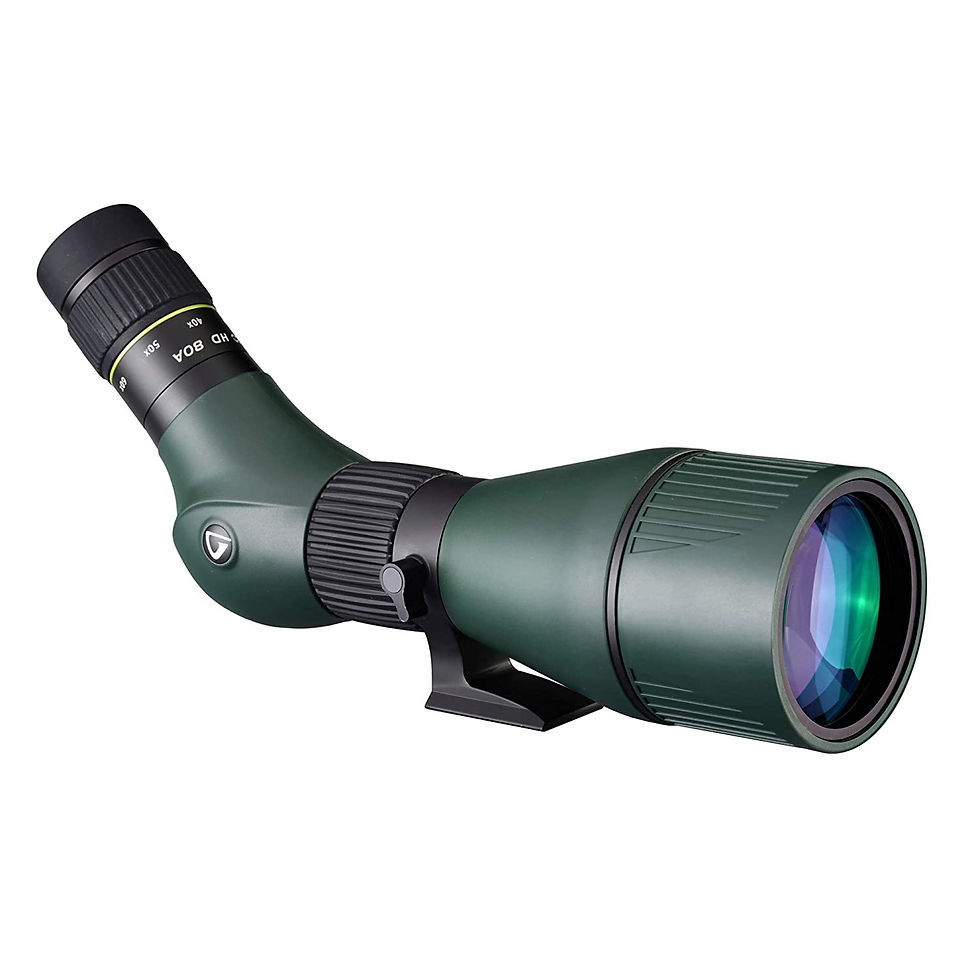

The angled view Endeavor HD 20-60x82 Spotting Scope combines a nitrogen-filled magnesium housing and a fully multicoated optical path to create a well-equipped zoom optic for intermediate to long-range observation. Endeavor HD series features an extra-low dispersion (ED) lens system and phase-corrected BaK4 prisms, which maximize light transmission and produce color faithful images that are rich with contrast.
This version of the Endeavor HD spotting scope includes a 20-60x zoom eyepiece featuring a rubber zoom dial. A 1:3 zoom ratio and 2.1-1.0° angle of view complement the eyepiece's long 19mm eye relief and rubber eyecup, which help to provide additional viewing comfort for long-duration observations.
In addition to the image quality and weather-sealed construction, the Endeavor HD includes several features that enhance the scope's functionality. A stacked dual-focus mechanism enables the observer to make fine and coarse focus adjustments. The tripod mounting foot has a standard 1/4" socket and is compatible with Vanguard tripods that accept the universal mounting shoe. An integrated sunshade and included custom fit raincoat carrying case help to make the Endeavor HD a full-featured spotting scope for outdoor use.
Optical Performance
- 20-60x magnification, 82mm objective
- Extra-low dispersion glass elements, BaK4 prisms
- Fully multicoated optics
- 2.1-1.0° angle of view
- 19.7 ft close focus distance (at 20x)
Use and Handling
- Angled view eyepiece is inclined 45° from the objective lens
- Separate coarse / fine focus controls
- Interchangeable eyepiece mount
- Tripod mounting foot
Construction Details
- Nitrogen-filled fogproof / waterproof housing
- Magnesium body with textured rubber armor
- Built-in sunshield
SPECIFICATIONS
Body Material
Magnesium alloy
Color
Black
Diameter of objectives
82mm
Dimensions (L x W)
380 x 180 mm
Eye Cup
Twist out
Eye Relief
19.0 ~ 20.0
Features
1177,1163,1176,1162
Field of View @1000m
37~ 17
Field of View @1000 YDS
110 ~ 52
Focus System
Center focus
Illuminated Reticle
No
Lens coating
Fully multi coated
Maximum Power
60x
Minimum Power
20x
Ocular Adjustment
± 0
Phase coating
YES
Power
20 ~ 60
Prism Type
BaK4 prism
Relative Brightness
16.8~1.8
Series
Endeavor HD
Twilight Factor
40.4~70.1
Type
Angled
View Angle
2.1 ~ 1.0
Warranty
Applicable by national law
Waterproof
Yes
Weight (oz/gram)
1.81
Manufacturer
VANGUARD, Vanguard: GOLD EMPIRE (MYANMAR) CO.,LTD PLOT NO.33/1+33KA/2+34KA/1, BLOCK NO. 560, LAKEPOOT TAW VILLAGE, HMAWBI T/S YANGON
Country of Origin
Myanmar
